54-minute flight time
Fly for longer, capture more
IP56 ingress protection
Built to operate in harsh environments
10km max effective operating radius
Capture more in a single flight
ISO 27001 certification
Secure and compliant data processing
12mm obstacle sensing module
Combine LiDAR and millimetre-wave radar
Airborne relay
One drone can relay signals to extend another's range
DJI Dock 3 is built for extreme conditions, operating seamlessly from -30°C to 50°C with reliable charging and performance. It’s the go-to solution for critical tasks, no matter the temperature.
The Matrice 4D and 4TD deliver impressive flight performance, handling winds up to 12 m/s with stable takeoff and landing, and up to 32 minutes of flight time.
DJI Dock 3 is built for harsh environments, with an IP56-rated design that protects internal systems for seamless operation. The Matrice 4D and 4TD feature an IP55 rating and low-noise, anti-ice propellers.
The D-RTK 3 Relay Fixed Deployment Version enhances video transmission and satellite acquisition with superior anti-interference performance. Installed at elevated locations, it extends transmission up to 25 km, ensuring reliable signals and flexible Dock 3 deployment.
Mounting the D-RTK 3 Relay on rooftops improves signal quality, enabling Dock 3 deployment near high-rise buildings or substations.
Installing the D-RTK 3 Relay on a nearby communication tower enhances signal quality, ensuring safe Dock 3 operations even in high-interference environments.
DJI Dock 3 is DJI’s first dock designed for vehicle-mounted deployment. Tested for vibration resistance, it features horizontal and cloud-based location calibration. The DJI Dock 3 Vehicle-Mounted Gimbal Mount offers a flexible solution for emergency operations and temporary deployments.
During mobile operations, DJI FlightHub 2 enables remote dock positioning and task assignment via the cloud, improving personnel coordination and scheduling efficiency.
Two DJI Dock 3 units can be deployed on a single vehicle for increased efficiency. A specialised take-over pattern prevents collisions, ensuring safe, alternating operations. Drones can hover and rotate for continuous aerial footage.
The DJI Matrice 4D and 4TD are built for DJI Dock 3, offering extended flight time and standalone use with the DJI RC Plus 2 Enterprise. Both feature advanced camera systems, with the Matrice 4D excelling in precision mapping and inspections, while the Matrice 4TD adds thermal imaging and NIR lighting for emergency response and public safety.
When fully charged, the Matrice 4D/4TD offers up to 47 minutes of flight time at 15 m/s—a 37% increase in operation time. At a 10 km radius, they provide 18 minutes of operation.
The Obstacle Sensing Module for Matrice 4D/4TD combines rotating LiDAR and millimeter-wave radar for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s. It enhances positioning in low light and ensures safe operation in complex power networks and substations.
The Matrice 4D Series pairs with the DJI RC Plus 2 Enterprise for standalone use and features an onboard relay function. One drone can fly as a relay, extending the operating range by maintaining a stable video link without 4G, even in obstructed areas.
The Matrice 4D Series features high-resolution fisheye lenses for enhanced low-light positioning and obstacle sensing. The Matrice 4TD adds full-color and black-and-white night vision, a 100m NIR auxiliary light, and a thermal camera.
DJI Enterprise
Wide-Angle Camera
4/3 CMOS
24mm Format Equivalent
20MP Effective Pixels
Mechanical Shutter
f/2.8-f/11
Medium Tele Camera
1/1.3-inch CMOS
70mm Format Equivalent
48MP Effective Pixels
f/2.8
Tele Camera
1/1.5-inch CMOS
168mm Format Equivalent
48MP Effective Pixels
f/2.8
Laser Range Finder
1800m Measurement Distance
1m Bind Zone
DJI Enterprise
Wide-Angle Camera
4/3 CMOS
24mm Format Equivalent
20MP Effective Pixels
Mechanical Shutter
f/2.8-f/11
Medium Tele Camera
1/1.3-inch CMOS
70mm Format Equivalent
48MP Effective Pixels
f/2.8
Tele Camera
1/1.5-inch CMOS
168mm Format Equivalent
48MP Effective Pixels
f/2.8
Laser Range Finder
1800m Measurement Distance
1m Bind Zone
NIR Auxiliary Light
100m Illumination Distance
6° FOV
Infrared Thermal Camera
640x512 Resolution
53mm Format Equivalent
f/1.0
Uncooled VOx Microbolometer
Supports UHR Infrared Image mode
The new automated flight route enhances public safety and inspections by enabling drones to detect and capture images, videos, and infrared anomalies. Operators receive real-time notifications for immediate response.
Change detection feature streamlines periodic analysis for environmental protection, disaster relief, and crack detection.. Auto-zoom capabilities allow operators to efficiently track subjects like vehicles or vessels for quick follow-up reviews.
The upgraded Virtual Cockpit now features Mouselook, allowing the drone to automatically adjust its attitude and gimbal for precise, rapid framing, enabling seamless “point and see” control.

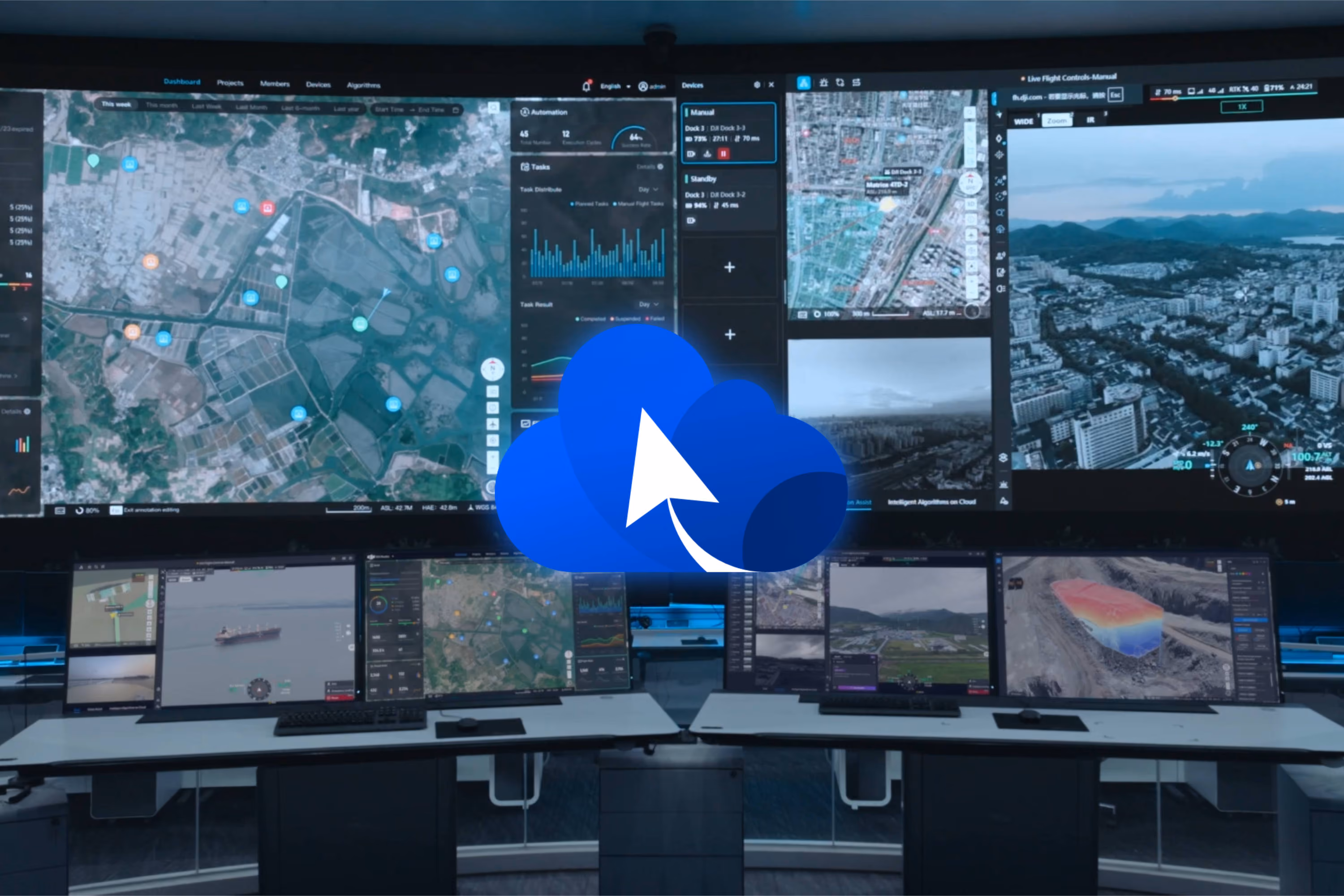

FlightHub 2 now features upgraded permission management, enabling users to customize access based on operational needs.
FlightHub 2 securely uploads, stores, and manages data on ISO/IEC 27001-certified AWS cloud servers, ensuring compliant data processing.
The 4G enhanced video service can be privately deployed with FlightHub 2 on-premises for increased data security and reliability.
Quickly deploy to emergency sites with optimal route planning. FlyTo Tasks enable drones to reach a point 1 km away at 100m altitude in just 100 seconds, enhancing situational awareness.
The upgraded engine reduces live view latency on FlightHub 2, ensuring reliable real-time decision-making.
In emergencies, real-time data transmission and rapid modeling occur during flight, with immediate data transfer upon landing. A rough model can be quickly generated via the cloud, boosting efficiency.
